In the previous post, we configure the Chef Knife Plugin in Oracle Cloud Infrastructure (OCI).
Now, we can provision & manage resources in in Oracle Cloud Infrastructure (OCI) with Chef Knife Plugin.
- Create a VM compute instance with Knife command.
[root@chefserver ~]# knife oci server create --availability-domain 'yQUJ:US-ASHBURN-AD-3' --compartment-id 'ocid1.compartment.oc1..aaaaaaaahezm67s5hcf2pqbxtw6omyukbdevqycn5vxzylisuojd6hj5jx6q' --image-id 'ocid1.image.oc1.iad.aaaaaaaavzjw65d6pngbghgrujb76r7zgh2s64bdl4afombrdocn4wdfrwdq' --shape 'VM.Standard2.1' --subnet-id 'ocid1.subnet.oc1.iad.aaaaaaaauxtyvarfkwdmo763gg75gcqiyvqgnlibxrzstfhdcpsbkh35er2a' --display-name ChefKnifeServer --ssh-authorized-keys-file ~/.ssh/id_rsa.pub --identity-file ~/.ssh/id_rsa --region 'us-ashburn-1' -c /root/chef-repo/.chef/knife.rb -N ChefKnifeServer -r 'sudo -i' /root/.chefdk/gem/ruby/2.6.0/gems/oci-2.7.0/lib/oci/identity/models/base_tag_definition_validator.rb:20: warning: already initialized constant OCI::Identity::Models::BaseTagDefinitionValidator::VALIDATOR_TYPE_ENUM /root/.chefdk/gem/ruby/2.6.0/gems/oci-2.7.0/lib/oci/identity/models/base_tag_definition_validator.rb:21: warning: previous definition of VALIDATOR_TYPE_ENUM was here Launched instance 'ChefKnifeServer' [ocid1.instance.oc1.iad.anuwcljtjcisnjiclykwz2nrpz2j2og4ljwa77xrghqh4nvcu63igqkb23ga] Waiting for instance to reach running state........................................done Instance 'ChefKnifeServer' is now running. Waiting for ssh access...done Bootstrapping with node name 'ChefKnifeServer'. Connecting to 150.136.164.64 WARNING: Failed to authenticate opc to 150.136.164.64 - trying password auth Enter password for opc@150.136.164.64. Connecting to 150.136.164.64 The authenticity of host '150.136.164.64 ()' can't be established. fingerprint is SHA256:FVmHbHx/10A1n6MwTGTVGoyZI49EW2LiPsfLK9rzrvA. Are you sure you want to continue connecting ? (Y/N) N You said no, so I'm done here. [root@chefserver ~]#

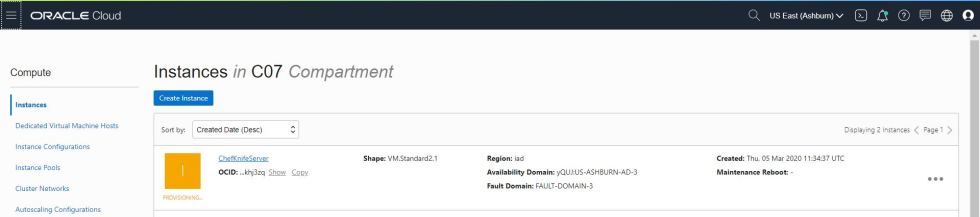

- Now go to OCI console and verify it. It must be in Provisioning State.

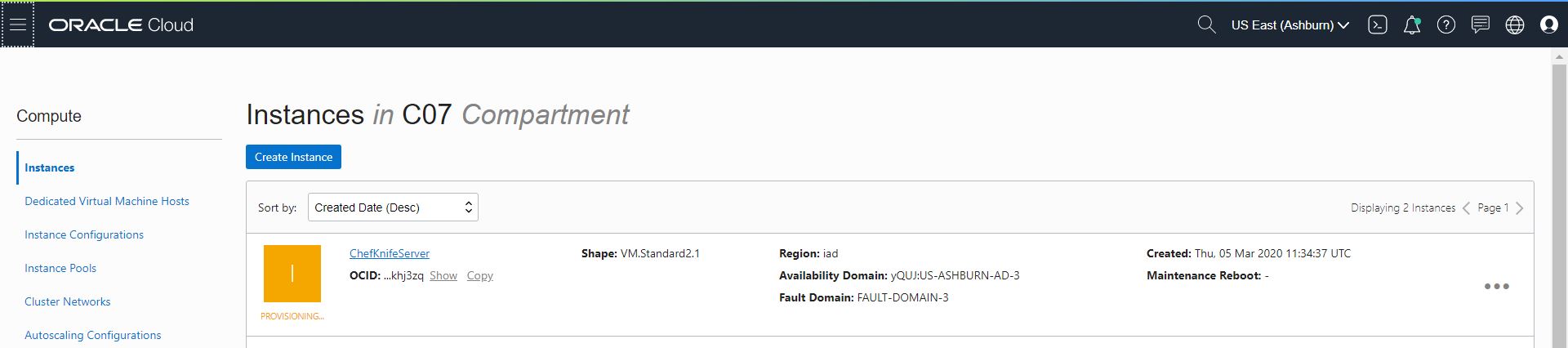

- After couple of minutes, Instance will be running.
- Now, let’s add the bootstrapper in new instance as client of Chef Server. Bootstrapping is done through SSH only, and uses the public IP address. You can create your in reciepe cookbook pass it as run-list. A run-list defines all of the information necessary for Chef to configure a node into the desired state.
[root@chefserver ~]# knife bootstrap 150.136.164.64 -U opc -i '~/.ssh/id_rsa' -N 'ChefKnifeServer' --sudo 'sudo -i' Connecting to 150.136.164.64 The authenticity of host '150.136.164.64 ()' can't be established. fingerprint is SHA256:FVmHbHx/10A1n6MwTGTVGoyZI49EW2LiPsfLK9rzrvA. Are you sure you want to continue connecting ? (Y/N) Y Connecting to 150.136.164.64 Creating new client for ChefKnifeServer Creating new node for ChefKnifeServer Bootstrapping 150.136.164.64 [150.136.164.64] -----> Installing Chef Omnibus (stable/15) [150.136.164.64] downloading https://omnitruck.chef.io/chef/install.sh to file /tmp/install.sh.11807/install.sh [150.136.164.64] trying wget... [150.136.164.64] el 7 x86_64 [150.136.164.64] Getting information for chef stable 15 for el... [150.136.164.64] downloading https://omnitruck.chef.io/stable/chef/metadata?v=15&p=el&pv=7&m=x86_64 [150.136.164.64] to file /tmp/install.sh.11812/metadata.txt [150.136.164.64] trying wget... [150.136.164.64] sha1 15ee4fd0df70b3e3f320d4ebcefd250583086006 sha256 57cdf26636ffd876277dcc865d70df34a178ad2ef99f36121dc576bf07f98894 url https://packages.chef.io/files/stable/chef/15.8.23/el/7/chef-15.8.23-1.el7.x86_64.rpm version 15.8.23 [150.136.164.64] [150.136.164.64] downloaded metadata file looks valid... [150.136.164.64] downloading https://packages.chef.io/files/stable/chef/15.8.23/el/7/chef-15.8.23-1.el7.x86_64.rpm to file /tmp/install.sh.11812/chef-15.8.23-1.el7.x86_64.rpm [150.136.164.64] trying wget... [150.136.164.64] Comparing checksum with sha256sum... [150.136.164.64] Installing chef 15 [150.136.164.64] installing with rpm... [150.136.164.64] warning: /tmp/install.sh.11812/chef-15.8.23-1.el7.x86_64.rpm: Header V4 DSA/SHA1 Signature, key ID 83ef826a: NOKEY [150.136.164.64] Preparing... [150.136.164.64] ######################################## [150.136.164.64] Updating / installing... chef-15.8.23-1.el7 [150.136.164.64] # [150.136.164.64] # [150.136.164.64] # [150.136.164.64] # [150.136.164.64] # [150.136.164.64] # [150.136.164.64] # [150.136.164.64] # [150.136.164.64] # [150.136.164.64] # [150.136.164.64] # [150.136.164.64] # [150.136.164.64] Thank you for installing Chef Infra Client! For help getting started visit https://learn.chef.io [150.136.164.64] Starting the first Chef Infra Client Client run... [150.136.164.64] +---------------------------------------------+ ? 2 product licenses accepted. +---------------------------------------------+ [150.136.164.64] Starting Chef Infra Client, version 15.8.23 [150.136.164.64] resolving cookbooks for run list: [] [150.136.164.64] Synchronizing Cookbooks: [150.136.164.64] Installing Cookbook Gems: [150.136.164.64] Compiling Cookbooks... [150.136.164.64] [2020-03-05T12:44:06+00:00] WARN: Node ChefKnifeServer has an empty run list. [150.136.164.64] Converging 0 resources [150.136.164.64] Running handlers: [150.136.164.64] Running handlers complete [150.136.164.64] Chef Infra Client finished, 0/0 resources updated in 02 seconds [root@chefserver ~]#
- Now, run and verify the couple of command to manage resources.
[root@chefserver ~]# knife client list ChefKnifeServer oraclehelp-validator [root@chefserver ~]# knife node list ChefKnifeServer [root@chefserver .chef]# knife node show ChefKnifeServer Node Name: ChefKnifeServer Environment: _default FQDN: ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com IP: 10.0.1.3 Run List: Roles: Recipes: Platform: oracle 7.7 Tags: [root@chefserver ~]# knife oci server list /root/.chefdk/gem/ruby/2.6.0/gems/oci-2.7.0/lib/oci/identity/models/base_tag_definition_validator.rb:20: warning: already initialized constant OCI::Identity::Models::BaseTagDefinitionValidator::VALIDATOR_TYPE_ENUM /root/.chefdk/gem/ruby/2.6.0/gems/oci-2.7.0/lib/oci/identity/models/base_tag_definition_validator.rb:21: warning: previous definition of VALIDATOR_TYPE_ENUM was here Display Name State ID ChefKnifeServer Server RUNNING ocid1.instance.oc1.iad.anuwcljtjcisnjicouvsfmum6qupwvxonhx4k2i46l7apeflpvu3nykhj3zq [root@chefserver ~]# knife oci server show --instance-id ocid1.instance.oc1.iad.anuwcljtjcisnjicouvsfmum6qupwvxonhx4k2i46l7apeflpvu3nykhj3zq /root/.chefdk/gem/ruby/2.6.0/gems/oci-2.7.0/lib/oci/identity/models/base_tag_definition_validator.rb:20: warning: already initialized constant OCI::Identity::Models::BaseTagDefinitionValidator::VALIDATOR_TYPE_ENUM /root/.chefdk/gem/ruby/2.6.0/gems/oci-2.7.0/lib/oci/identity/models/base_tag_definition_validator.rb:21: warning: previous definition of VALIDATOR_TYPE_ENUM was here Display Name: ChefKnifeServer Instance ID: ocid1.instance.oc1.iad.anuwcljtjcisnjicouvsfmum6qupwvxonhx4k2i46l7apeflpvu3nykhj3zq Lifecycle State: RUNNING Availability Domain: yQUJ:US-ASHBURN-AD-3 Compartment Name: C07 Compartment ID: ocid1.compartment.oc1..aaaaaaaahezm67s5hcf2pqbxtw6omyukbdevqycn5vxzylisuojd6hj5jx6q Region: iad Image Name: Oracle-Linux-7.7-2020.02.21-0 Image ID: ocid1.image.oc1.iad.aaaaaaaavzjw65d6pngbghgrujb76r7zgh2s64bdl4afombrdocn4wdfrwdq Shape: VM.Standard2.1 VCN Name: K8SVCN VCN ID: ocid1.vcn.oc1.iad.amaaaaaajcisnjiat2g4gkzkzrak6knrqk4243jsndmbs6c6ywgudv7c2y6a Launched: Thu, 5 Mar 2020 11:34:37 +00:00 Primary Public IP Address: 150.136.168.25 Primary Private IP Address: 10.0.1.3 Primary Hostname: ChefKnifeServerserver Primary FQDN: ChefKnifeServerserver.sub03051059070.k8svcn.oraclevcn.com Primary Subnet Name: Public Subnet-K8SVCN [root@chefserver ~]#
- Test the connection via SSH with pubic IP and Also, test with Knife SSH command.
[root@chefserver ~]# ssh -i ~/.ssh/id_rsa opc@150.136.168.25 The authenticity of host '150.136.168.25 (150.136.168.25)' can't be established. ECDSA key fingerprint is SHA256:tVPpDkR+YsIoX+5oW7jT3oPUrErhY6ZGKQsAStLI2FU. ECDSA key fingerprint is MD5:8b:aa:a3:90:34:01:e5:89:aa:94:97:44:61:49:5e:42. Are you sure you want to continue connecting (yes/no)? yes Warning: Permanently added '150.136.168.25' (ECDSA) to the list of known hosts. [opc@ChefKnifeServer ~]$ exit logout Connection to 150.136.168.25 closed. [root@chefserver ~]# knife ssh 'name:ChefKnifeServer' 'cat /etc/hosts' -x opc ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com 127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4 ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com ::1 localhost localhost.localdomain localhost6 localhost6.localdomain6 ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com 10.0.1.3 ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com ChefKnifeServer [root@chefserver ~]#
- Now, we can deploying the application on client from Chef Workstation with Knife plugin.
[root@chefserver ~]# knife ssh 'name:ChefKnifeServer' 'sudo yum install -y httpd && sudo systemctl start httpd && sudo systemctl status httpd' -x opc ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Loaded plugins: langpacks, ulninfo ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Resolving Dependencies ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com --> Running transaction check ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com ---> Package httpd.x86_64 0:2.4.6-90.0.1.el7 will be installed ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com --> Finished Dependency Resolution ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Dependencies Resolved ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com ================================================================================ ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Package Arch Version Repository Size ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com ================================================================================ ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Installing: ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com httpd x86_64 2.4.6-90.0.1.el7 ol7_latest 1.2 M ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Transaction Summary ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com ================================================================================ ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Install 1 Package ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Total download size: 1.2 M ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Installed size: 3.7 M ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Downloading packages: httpd-2.4.6-90.0.1.el7.x86_64.rpm | 1.2 MB 00:00 ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Running transaction check ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Running transaction test ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Transaction test succeeded ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Running transaction Installing : httpd-2.4.6-90.0.1.el7.x86_64 1/1 Verifying : httpd-2.4.6-90.0.1.el7.x86_64 1/1 ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Installed: ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com httpd.x86_64 0:2.4.6-90.0.1.el7 ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Complete! ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com ? httpd.service - The Apache HTTP Server ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Loaded: loaded (/usr/lib/systemd/system/httpd.service; disabled; vendor preset: disabled) ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Active: active (running) since Thu 2020-03-05 18:58:03 GMT; 38ms ago ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Docs: man:httpd(8) ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com man:apachectl(8) ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Main PID: 17130 (httpd) ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Status: "Processing requests..." ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com CGroup: /system.slice/httpd.service ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com +-17130 /usr/sbin/httpd -DFOREGROUND ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com +-17131 /usr/sbin/httpd -DFOREGROUND ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com +-17132 /usr/sbin/httpd -DFOREGROUND ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com +-17133 /usr/sbin/httpd -DFOREGROUND ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com +-17134 /usr/sbin/httpd -DFOREGROUND ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com +-17135 /usr/sbin/httpd -DFOREGROUND ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Mar 05 18:58:03 ChefKnifeServer systemd[1]: Starting The Apache HTTP Server... ChefKnifeServer.sub03051059070.k8svcn.oraclevcn.com Mar 05 18:58:03 ChefKnifeServer systemd[1]: Started The Apache HTTP Server. [root@chefserver ~]#
- Delete the Instance with Knife Plugin.
[root@chefserver ~]# knife oci server delete --instance-id ocid1.instance.oc1.iad.anuwcljtjcisnjicouvsfmum6qupwvxonhx4k2i46l7apeflpvu3nykhj3zq /root/.chefdk/gem/ruby/2.6.0/gems/oci-2.7.0/lib/oci/identity/models/base_tag_definition_validator.rb:20: warning: already initialized constant OCI::Identity::Models::BaseTagDefinitionValidator::VALIDATOR_TYPE_ENUM /root/.chefdk/gem/ruby/2.6.0/gems/oci-2.7.0/lib/oci/identity/models/base_tag_definition_validator.rb:21: warning: previous definition of VALIDATOR_TYPE_ENUM was here Instance name: ChefKnifeServer Delete server? (y/n) y Initiated delete of instance ocid1.instance.oc1.iad.anuwcljtjcisnjicouvsfmum6qupwvxonhx4k2i46l7apeflpvu3nykhj3zq [root@chefserver ~]#

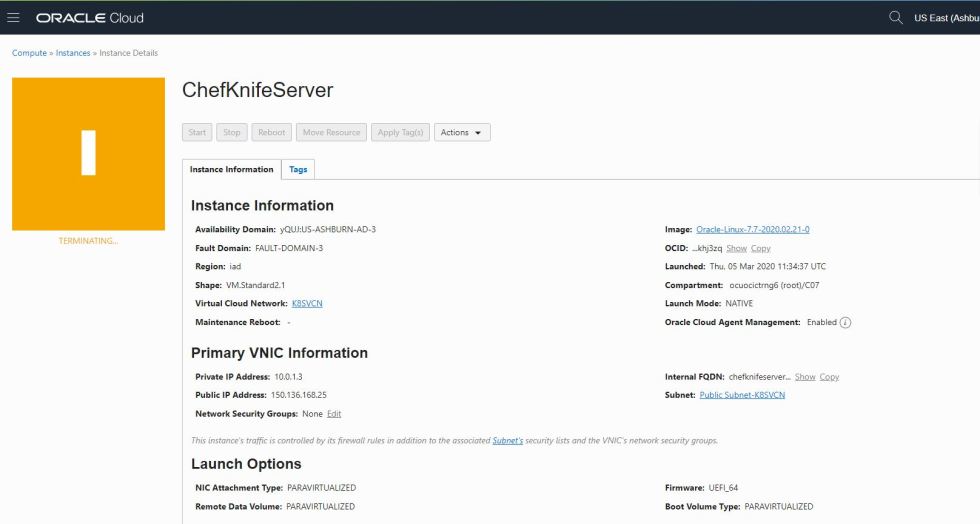

- Move back to OCI console and verify it.
